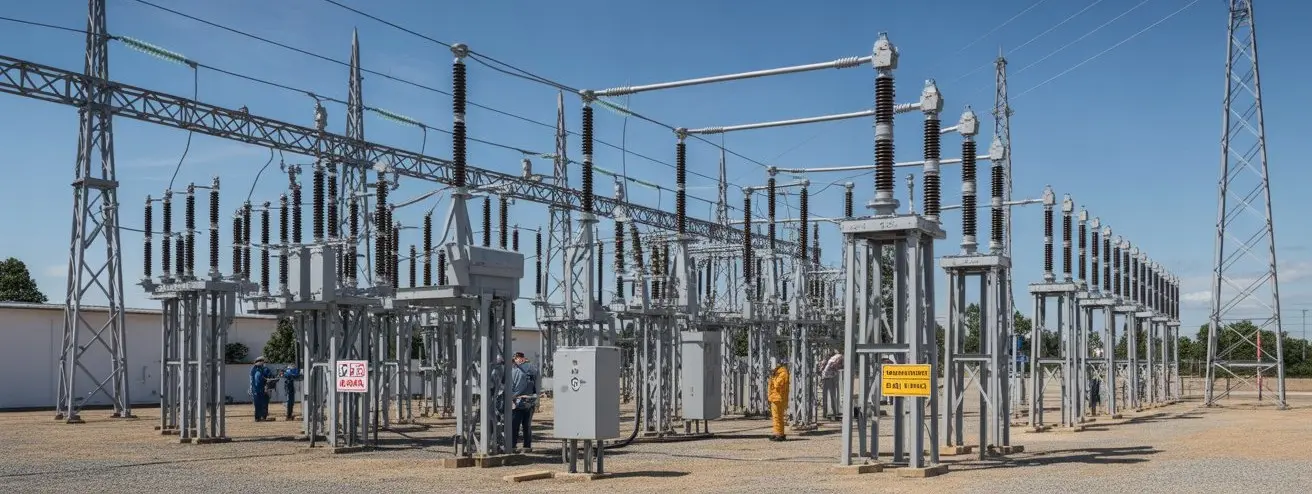

Switchyard Testing – Ensure Safety and Reliability of Power Systems
Switchyard Testing is an essential process in electrical substations that ensures the safe and reliable operation of power systems. It involves detailed testing of all major switchyard components like circuit breakers, current transformers (CTs), potential transformers (PTs), busbars, lightning arresters, and isolators.
Regular Switchyard Testing helps prevent electrical failures, enhances equipment life, and improves overall system reliability.
What is Switchyard Testing?
Switchyard Testing means checking the performance, insulation, and operational health of all equipment installed in the substation or switchyard area. It verifies whether each device functions correctly under both normal and fault conditions.
In short, Switchyard Testing ensures that the electrical system remains fault-free, efficient, and safe.
Importance of Switchyard Testing
Switchyard Testing plays a critical role in maintaining uninterrupted power supply and system protection. It helps engineers identify weak points and potential faults before they cause a breakdown.
Key reasons why Switchyard Testing is important:
-
Ensures equipment operates within standard performance limits.
-
Reduces risk of electrical faults and system outages.
-
Improves power system reliability and safety.
-
Helps plan preventive maintenance effectively.
Purpose of Switchyard Testing
The main purpose of Switchyard Testing is to evaluate the electrical, mechanical, and insulation health of each substation component.
It ensures that the system can handle operational load safely and perform as per manufacturer specifications.
What Does Switchyard Testing Include?
Switchyard Testing covers a range of equipment performance and insulation tests such as:
-
Circuit Breaker Timing & Contact Resistance Measurement
-
Transformer Oil and Insulation Testing
-
CT/PT Ratio and Polarity Verification
-
Busbar Continuity and Insulation Test
-
Earth Resistance and Lightning Arrester Testing
Each of these tests ensures that the power system remains stable and fault-free during operation.
Why is Switchyard Testing Needed?
Switchyard Testing is essential for:
-
Preventing electrical faults and reducing downtime.
-
Ensuring system safety and operational efficiency.
-
Detecting faulty components early.
-
Improving preventive maintenance and power reliability.
Process of Switchyard Testing
Step 1 – Visual Inspection
Inspect the physical condition of all equipment — check for cracks, leakage, rust, or contamination.
Step 2 – Electrical Testing
Perform tests on circuit breakers, CTs, PTs, transformers, lightning arresters, and busbars.
Step 3 – Insulation & Resistance Testing
Measure insulation resistance (IR), contact resistance (CRM), and earth resistance to ensure safety.
Step 4 – Data Recording and Analysis
Compare test results with reference standards to identify deviations or abnormalities.
Main Equipment Used in Switchyard Testing
-
Circuit Breaker Analyzer
-
CT/PT Testing Kit
-
Transformer Oil Testing Kit
-
Insulation Resistance Tester (Megger)
-
Earth Resistance Tester
-
High Voltage (HV) Test Set
Final Result
After performing Switchyard Testing, engineers analyze the results to determine the condition of each equipment.
If all parameters are within standard limits, the system is marked “Healthy and Reliable.” Any abnormal readings indicate maintenance or replacement requirements.
Advantages of Switchyard Testing
-
Reduces chances of power failure and tripping.
-
Enhances power system reliability and efficiency.
-
Extends equipment life span.
-
Ensures workplace and system safety.
Summary
Switchyard Testing is a vital part of power system maintenance that ensures long-term operational reliability.
By testing every component—breaker, CT, PT, transformer, and earthing system—engineers can detect problems early and prevent costly breakdowns.
Regular Switchyard Testing not only keeps your power system healthy but also guarantees continuous, safe, and efficient operation.
