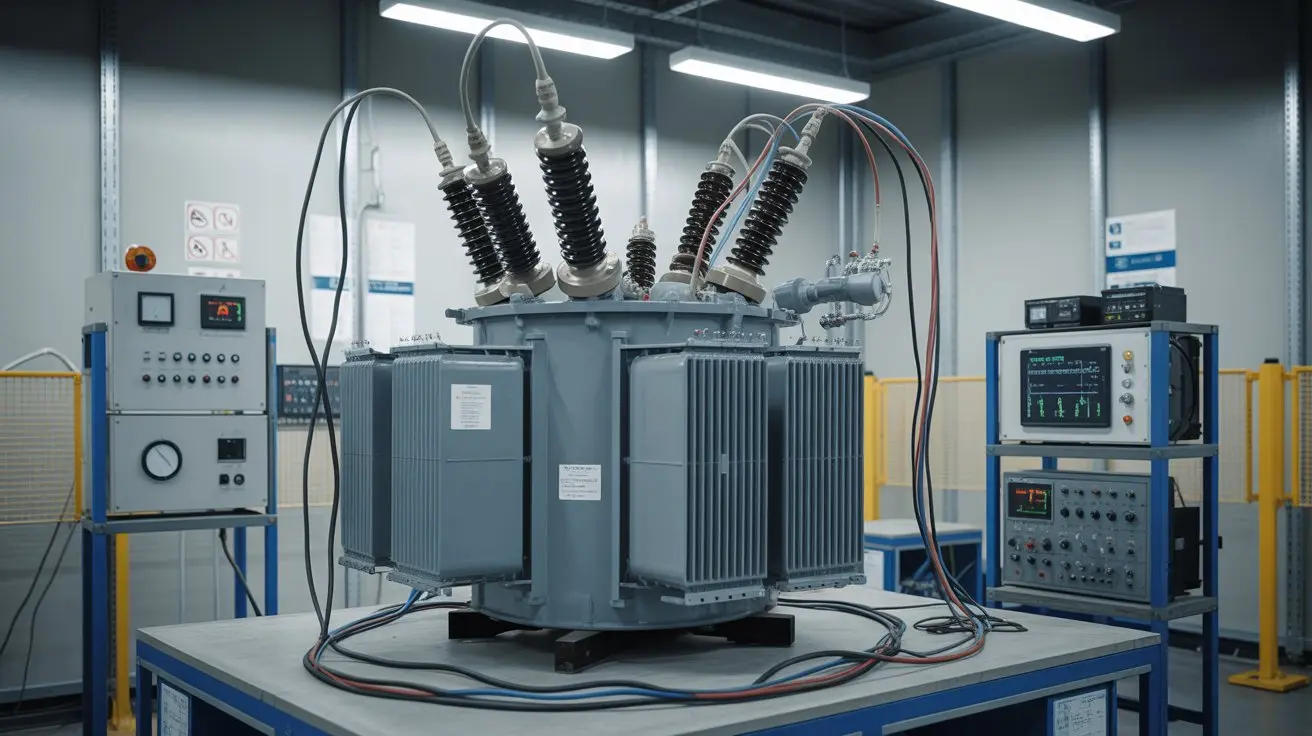

Transformer Testing is the process of checking the performance, reliability, and safety of a transformer under various operating conditions.
It ensures that the transformer operates efficiently, without insulation failure, overheating, or power loss.
Testing is performed both before installation (factory testing) and after installation (on-site or field testing) to verify the transformer's health and functionality.
Importance of Switchyard Testing
Switchyard testing plays a crucial role in maintaining the stability and safety of power transmission systems.
It ensures that all electrical components — such as circuit breakers, isolators, CTs, PTs, and transformers — function properly during switching and fault conditions.
Regular testing helps prevent unexpected power failures, equipment damage, and costly downtime.
Purpose of Switchyard Testing
The main purpose of switchyard testing is to ensure uninterrupted power flow, accurate fault detection, and system protection.
It helps verify the operational reliability of protection relays, breakers, and measuring instruments used in high-voltage networks.
Switchyard testing also identifies potential weaknesses before they lead to faults.
What Does Transformer Testing Include?
Transformer testing includes various electrical and mechanical tests designed to check insulation quality, winding resistance, and performance efficiency.
It covers both routine tests (done on every transformer) and type/special tests (done under specific conditions).
Common Tests Include:
-
Insulation Resistance Test (IR Test)
-
Winding Resistance Test
-
Turns Ratio Test (TTR Test)
-
Magnetizing Current Test
-
Tan Delta Test / Dissipation Factor Test
-
BDV (Breakdown Voltage) Test of Transformer Oil
-
Vector Group Test
-
Polarity and Phase Relation Test
-
Load and Temperature Rise Test
Each of these tests helps assess different parameters that determine the transformer's efficiency and insulation health.
Why is Transformer Testing Needed?
Over time, transformer components such as insulation, windings, and oil degrade due to heat, moisture, and mechanical stress.
Testing helps detect early signs of deterioration, ensuring preventive maintenance before a failure occurs.
It also ensures compliance with IS/IEC standards, improving the overall reliability and lifespan of the equipment.
Process of Transformer Testing
Transformer testing is performed systematically to ensure accurate results.
Below is a typical step-by-step process:
1. Visual Inspection
Check for oil leakage, terminal conditions, earthing, and nameplate details.
2. Pre-Test Preparation
Ensure the transformer is isolated, grounded, and test instruments are calibrated.
3. Electrical Testing
Perform tests such as IR, Winding Resistance, Ratio, and Tan Delta to assess insulation and performance.
4. Oil Testing
Check oil’s BDV value and moisture content.
5. Functional and Relay Testing
Test the relay coordination, protection schemes, and control wiring in the switchyard.
6. Analysis and Reporting
Evaluate the results, compare with standard values, and prepare a test report.
Main Equipment Used in Transformer Testing
Major Testing Instruments:
-
Insulation Resistance Tester (Megger)
-
Winding Resistance Meter
-
TTR (Transformer Turns Ratio) Kit
-
Tan Delta Test Kit
-
BDV Test Set
-
CT/PT Test Set
-
Relay Test Kit
-
Oil Testing Equipment
These instruments help measure different parameters like insulation resistance, ratio accuracy, and oil dielectric strength — all crucial for transformer health assessment.
Final Result
After successful testing, the transformer’s performance parameters are compared with standard limits.
A healthy transformer shows high insulation resistance, correct turns ratio, and stable tan delta values.
Any deviation indicates deterioration, prompting maintenance or repair actions.
Advantages of Switchyard Testing
Key Benefits:
✅ Prevents unexpected transformer or breaker failure.
✅ Ensures system reliability and safety.
✅ Detects insulation or winding issues early.
✅ Reduces maintenance costs and downtime.
✅ Increases equipment life and performance.
Summary
Transformer and switchyard testing are vital for ensuring the safe and efficient operation of electrical power systems.
Regular testing enhances reliability, prevents costly breakdowns, and extends equipment life.
In short, “Testing today ensures power stability tomorrow.”
Click Here : Insulation Resistance Test
