The Turns Ratio Test (TTR Test) is a crucial diagnostic test performed on transformers to verify the correct voltage ratio between the primary and secondary windings. It ensures that the transformer is wound correctly and operates as per design specifications. By measuring the ratio of primary to secondary winding turns, engineers can detect shorted turns, open circuits, or incorrect connections — all of which can impact transformer efficiency and reliability.
Importance of Turns Ratio Test
The importance of the Turns Ratio Test lies in its ability to confirm the operational health and design accuracy of a transformer. This test is essential for:
-
Detecting manufacturing defects in winding connections.
-
Ensuring uniform voltage transformation.
-
Preventing power losses and operational failures.
-
Enhancing transformer life and performance reliability.
Purpose of Turns Ratio Test
The purpose of the Turns Ratio Test is to determine whether the transformer windings are correctly proportioned. The ratio of turns directly affects voltage transformation — hence, any variation can cause overvoltage or undervoltage issues. This test helps engineers validate that the transformer’s performance meets the required standards before installation or after maintenance.
What Does the Turns Ratio Test Do?
The Turns Ratio Test compares the measured voltage ratio of the transformer with its rated voltage ratio. If there’s any deviation beyond acceptable limits, it indicates potential winding issues such as:
-
Incorrect polarity
-
Open or shorted turns
-
Magnetic imbalance
Why is the Turns Ratio Test Needed?
The Turns Ratio Test is needed to ensure that the transformer will operate safely and efficiently under load conditions. A faulty winding ratio can cause voltage imbalances, overheating, or insulation failure. By identifying such issues early, the test helps reduce downtime, avoid costly repairs, and maintain system stability.

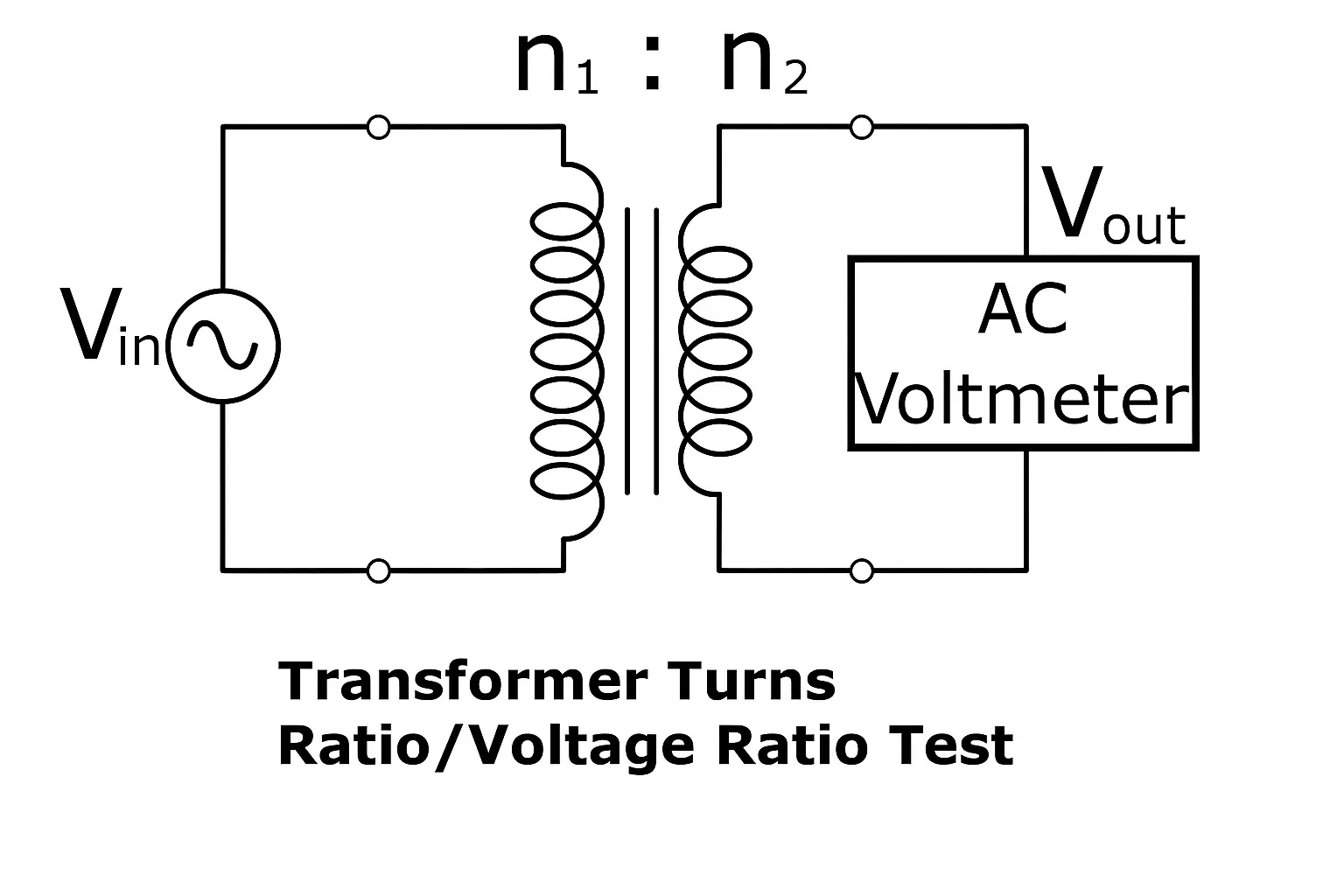

Process of Conducting the Turns Ratio Test
Step-by-Step Procedure
-
Disconnect the transformer from all power sources.
-
Connect the Turns Ratio Tester between the primary and secondary windings.
-
Apply a known voltage to the primary winding.
-
Measure the induced voltage in the secondary winding.
-
Calculate the turns ratio (Primary Voltage / Secondary Voltage).
-
Compare the measured ratio with the nameplate value.
Acceptable Tolerance Levels
Usually, a deviation of ±0.5% is considered acceptable. Any larger deviation indicates a problem that requires further investigation.
(Keywords: Turns Ratio Testing procedure, Transformer testing process, TTR tolerance)
Main Equipment Used for Turns Ratio Test
The main equipment used includes:
-
Digital Turns Ratio Tester (TTR Meter)
-
Test Leads and Cables
-
Insulation Resistance Meter (optional)
-
Safety PPE Kits
This modern test equipment ensures accurate readings, automatic calculation, and improved safety during transformer testing.
Final Result Interpretation
After testing, the measured turns ratio is compared with the rated ratio. If both match within the permissible tolerance, the transformer is deemed electrically healthy. Any deviation may indicate issues like shorted turns, inter-turn faults, or incorrect connections requiring corrective maintenance.
Advantages of Turns Ratio Test
-
Confirms the accuracy of winding design.
-
Detects electrical and mechanical defects.
-
Reduces transformer failure risk.
-
Ensures voltage regulation and system stability.
-
Aids in preventive maintenance planning.
Summary
The Turns Ratio Test is one of the most fundamental and reliable tests in transformer diagnostics. It verifies the electrical integrity of windings and ensures that voltage transformation occurs as designed. Regular TTR testing not only enhances equipment performance but also prevents unexpected breakdowns in power systems.
