Meaning and Importance of Tan Delta Test
The Tan Delta Test is an Insulation Diagnostic Test performed to evaluate the health of an electrical equipment’s insulation. It measures the Insulation Loss Angle (δ), which indicates whether the insulation is in good or deteriorating condition.
Importance: This test is highly useful for maintaining the reliability, safety, and performance of electrical systems.
Importance of Tan Delta Test in Transformers
The Tan Delta Test is used to check the health of transformer winding insulation. It helps detect moisture, dirt, and deterioration in oil and paper insulation.
-
Low Tan Delta = Healthy insulation
-
High Tan Delta = Weak or deteriorated insulation
Purpose of Tan Delta Test
The main purpose of this test is to measure the insulation’s quality and aging condition. It identifies issues caused by moisture, contamination, and electrical stress.
-
Detect insulation aging
-
Check moisture and contamination
-
Support preventive maintenance planning
What Does Tan Delta Test Do?
This test measures insulation losses and determines whether the insulation is ideal or if leakage current has increased, indicating insulation deterioration.
Why is Tan Delta Test Needed?
The Tan Delta Test is essential for enhancing the reliability and safety of high-voltage equipment. It helps prevent breakdowns and supports scientific maintenance planning.
Tan Delta Test Process
The technical steps of the Tan Delta Test are as follows:
-
Disconnect the equipment and prepare it safely.
-
Connect the Tan Delta Test Kit.
-
Apply AC voltage gradually.
-
Measure current and phase angle.
-
Calculate and analyze the Tan δ value.
Tan Delta Test Main Equipment Used
-

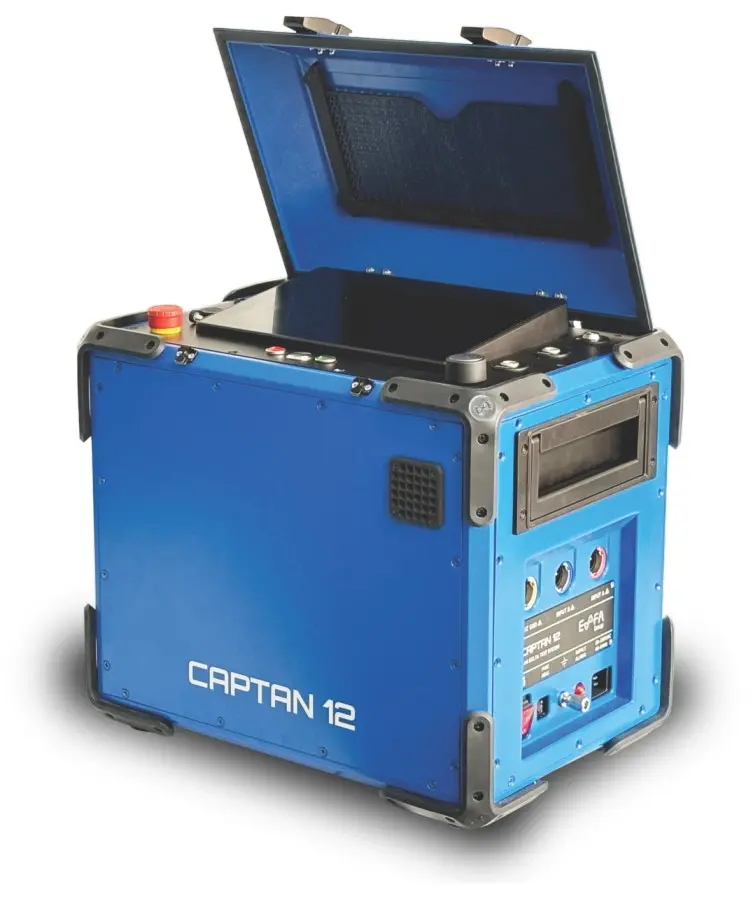

an Delta Test Kit
-
Standard Capacitor
-
Test Cables & HV Connectors
-
Grounding Kit and Safety Tools
Final Result of Tan Delta Test
| Tan Delta Value | Condition |
|---|---|
| ≤ 0.005 | Excellent |
| 0.005 – 0.01 | Acceptable |
| ≥ 0.01 | Poor |
Advantages of Tan Delta Test
-
Early detection of insulation failure
-
Non-destructive and reliable method
-
Helps in preventive maintenance
-
Increases equipment lifespan
-
Reduces unplanned breakdowns
Summary
The Tan Delta Test is a vital diagnostic tool for electrical engineers to assess the insulation health of equipment. It plays a crucial role in ensuring reliability, performance, and operational safety of high-voltage systems.
