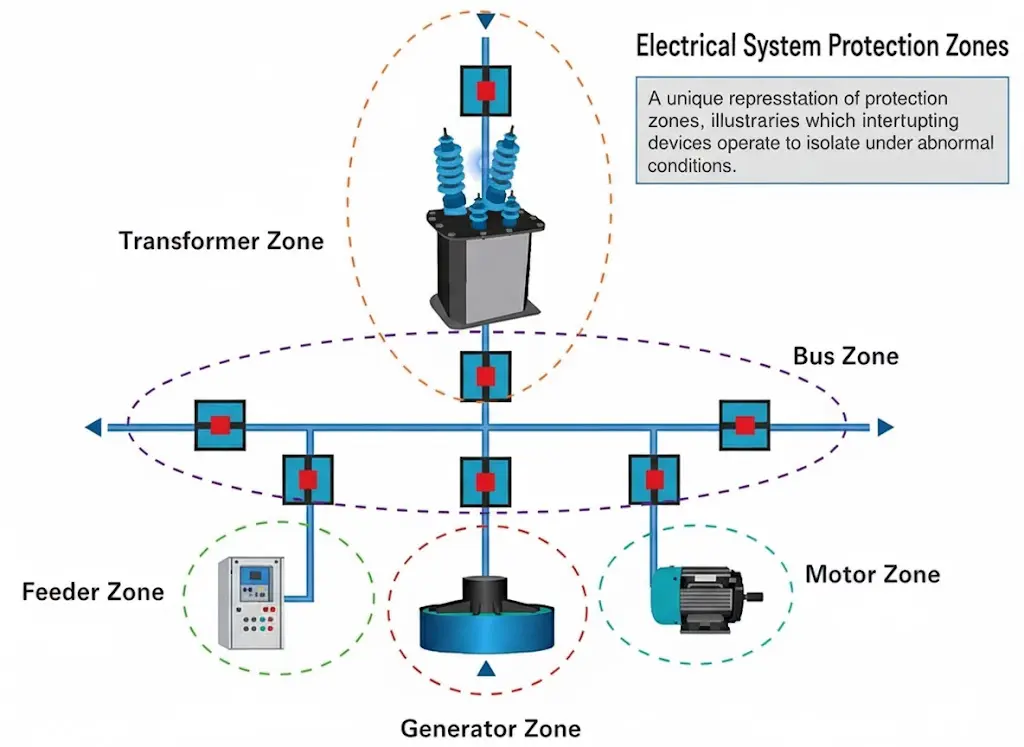

Relay Coordination for Transformers, Feeders and Motors – Complete Guide

Relay Coordination is a crucial process used in power systems to ensure the safe, reliable and selective operation of transformers, feeders and motors. Proper coordination helps protect equipment from faults, reduces downtime and maintains system stability.

Importance of Relay Coordination

Relay coordination is important because:

• Ensures selective tripping (only the faulty section is isolated)

• Protects transformers, feeders and motors from damage

• Minimizes system outages and downtime

• Improves overall reliability and safety

• Helps maintain proper fault discrimination between upstream and downstream relays

Purpose of Relay Coordination

The main purpose of relay coordination is to:

• Assign correct relay settings for each protection device

• Provide graded protection throughout the power network

• Prevent unnecessary tripping of upstream breakers

• Ensure fast fault clearance for critical equipment

---

What Does Relay Coordination Testing Do?

Relay coordination testing ensures that:

• Each relay operates at the right time

• Backup relays operate only when primary relay fails

• Protection curve matches the system fault level

• Breaker operating time aligns with relay settings

Why Relay Coordination Is Needed?

Relay coordination is needed because:

• Power systems involve multiple protective devices

• Fault currents vary across network

• Sensitive equipment like motors and transformers need exact protection

• Ensures continuity of power supply

• Prevents cascading failures

Process of Relay Coordination

Relay coordination involves the following steps:

1. Data Collection

   • Transformer rating, feeder load, motor capacity

   • Fault levels, breaker time, relay type

2. Short Circuit Study

   • Calculate fault current at each protection level

3. Curve Selection

   • Select appropriate Time-Current Characteristics (TCC)

4. Relay Setting Calculation

   • Plug Setting

   • Time Multiplier Setting (TMS)

   • Pickup Current Setting

5. Coordination Plotting

   • Plot TCC curves for upstream & downstream relays

   • Ensure minimum coordination margin

6. Testing & Validation

   • Primary injection test

   • Secondary injection test

   • Breaker timing test

Main Equipment Used

• Numerical Relays

• Electromechanical Relays

• Current Transformers (CT)

• Potential Transformers (PT)

• Circuit Breakers

• Relay Testing Kit

• Software Tools (ETAP, CYME, DIGSILENT PowerFactory)

Final Result of Relay Coordination

After completing relay coordination:

• Relays operate in correct sequence

• Fault is cleared quickly and selectively

• Critical equipment remains protected

• System reliability improves

• Reduced tripping and outages

Advantages of Relay Coordination

• Prevents equipment damage

• Ensures reliable system operation

• Avoids nuisance tripping

• Helps improve system stability

• Enhances safety standards

• Increases equipment lifespan

Summary

Relay Coordination ensures that transformers, feeders and motors are protected with the right relay settings. It prevents unnecessary tripping, provides selective isolation and maintains reliability across the system.

Conclusion

Proper relay coordination is essential for every electrical network. It ensures that faults are cleared in a controlled manner without affecting the entire system. Regular relay coordination studies and testing help maintain power quality, system stability and the long-term safety of electrical equipment.
