HV (High Voltage) Panel Testing is a crucial process performed to verify the safety, performance, and reliability of high voltage switchgear panels before they are energized or commissioned into the power system.
These panels control, protect, and isolate electrical equipment in substations and industrial networks. Proper testing ensures that the system can handle high voltage operations safely and efficiently, avoiding faults, flashovers, and equipment damage.
Importance of HV Panel Testing
HV panels are responsible for distributing and protecting electrical power in high-voltage networks. Any malfunction can lead to severe breakdowns or safety hazards.
Key Importance:
-
Ensures that all components are installed and wired correctly.
-
Detects insulation weaknesses and potential short circuits.
-
Confirms the proper functioning of control and protection circuits.
-
Prevents costly system failures and unplanned outages.
-
Enhances safety for personnel and equipment.
Purpose of HV Panel Testing
The primary purpose of HV panel testing is to ensure that the panel and its components operate within the manufacturer’s design and protection parameters.
Objectives:
-
To verify insulation integrity, wiring accuracy, and circuit continuity.
-
To test the operation of circuit breakers, relays, and interlocks.
-
To validate tripping and protection logic.
-
To ensure the panel is safe for energization and long-term operation.
What Does HV Panel Testing Do?
HV Panel Testing checks the complete electrical and mechanical functionality of high voltage panels, including:
-
Circuit breaker timing and operation.
-
Insulation resistance and dielectric strength.
-
Contact resistance (CRM) and continuity of circuits.
-
Relay performance, interlocks, and protection schemes.
-
Busbar and earthing connections.
It ensures the entire panel performs reliably under high-voltage and fault conditions.
Why is HV Panel Testing Needed?
HV panels carry and control large amounts of electrical energy. Without proper testing, small errors or insulation failures can cause catastrophic accidents.
Need for HV Panel Testing:
-
To detect internal wiring or connection errors.
-
To ensure insulation health and avoid flashover.
-
To check the reliability of relays and protection circuits.
-
To prevent tripping failures and system downtime.
-
To validate safety compliance and standards (IEC/IS).
Process of HV Panel Testing
Step 1 – Visual Inspection
-
Check for physical damages, wiring layout, and proper labeling.
-
Verify mechanical operations of switches, isolators, and interlocks.
Step 2 – Insulation and Continuity Tests
-
Perform Insulation Resistance (IR) tests between phases, neutral, and earth.
-
Conduct Continuity Test for control and auxiliary circuits.
Step 3 – Contact Resistance and Circuit Breaker Tests
-
Measure Contact Resistance (CRM) using micro-ohmmeter.
-
Check breaker opening and closing times using a Circuit Breaker Analyzer.
Step 4 – Functional and Relay Testing
-
Perform Primary & Secondary Injection Tests to verify protection relay operation.
-
Validate tripping logic, interlocking, and auto-reclose functions.
Step 5 – High Voltage Test (Dielectric Test)
-
Apply high voltage as per the rated insulation level to confirm dielectric strength.
-
Ensure no leakage current or insulation breakdown occurs.
Step 6 – Final Verification and Reporting
-
Record all test results and compare with manufacturer standards.
-
Prepare the final test report before energization.
Main Equipment Used in HV Panel Testing
-
Insulation Resistance Tester (Megger)
-
Contact Resistance Meter (CRM Kit)
-
Primary & Secondary Injection Test Kit
-
Circuit Breaker Analyzer (Megger, OMICRON, SMC)
-
Tan Delta & Capacitance Meter
-

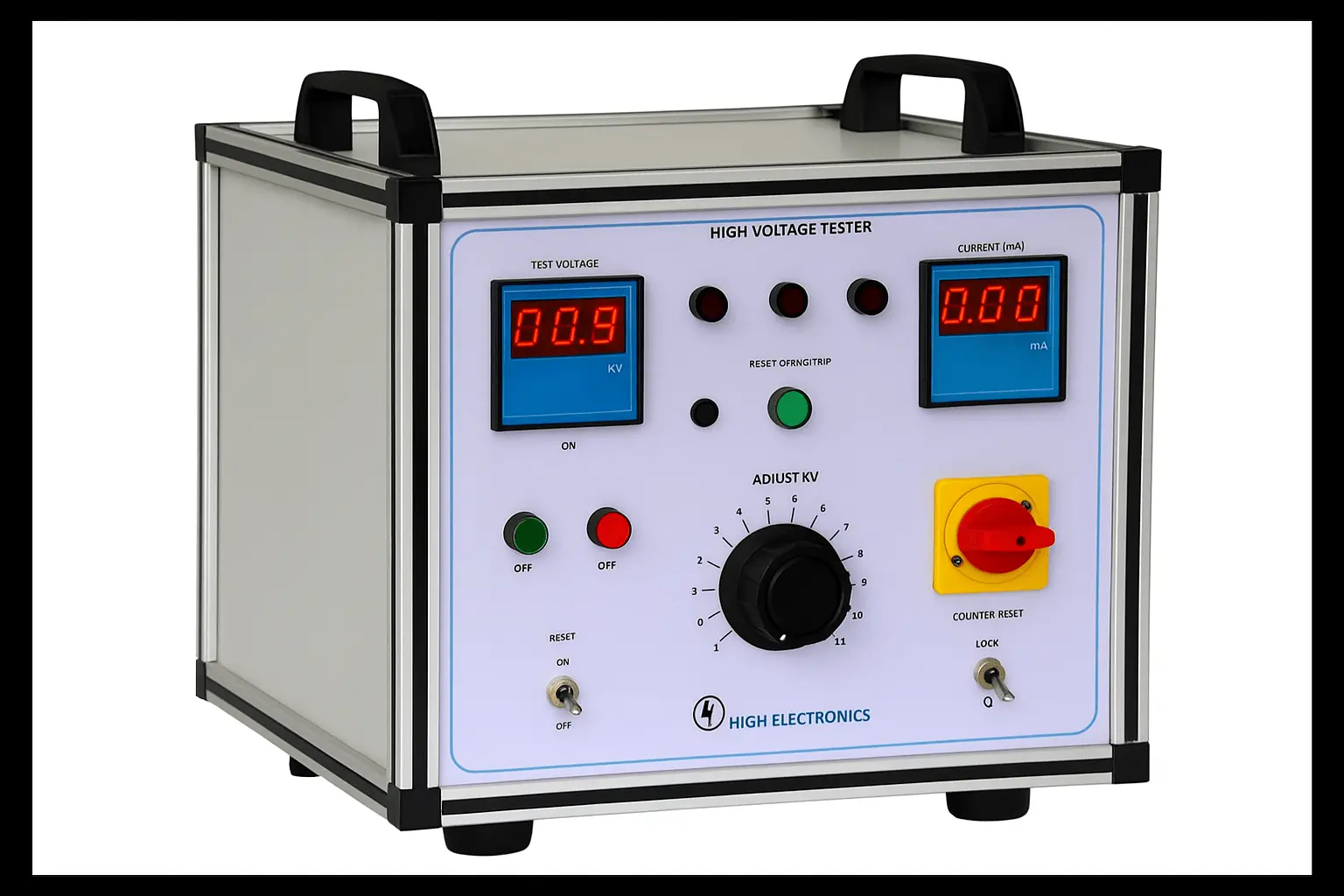

High Voltage (HV) Test Set
-
Relay Test Kit (OMICRON, ISA, SCOPE)
-
Multimeter / Clamp Meter
-
Laptop or PC for data analysis
Final Result
After all tests are successfully completed:
-
The HV panel is certified as “Ready for Commissioning.”
-
All protection and control systems are verified.
-
Relay coordination and timing are validated.
-
A detailed test report is generated, containing insulation, timing, and resistance readings.
If any abnormality is found, corrective action is taken before energization.
Advantages of HV Panel Testing
- Prevents electrical accidents and system failures.
- Ensures proper relay and protection coordination.
- Improves system reliability and operational safety.
- Helps in early detection of mechanical or insulation faults.
- Reduces downtime and maintenance costs.
- Ensures compliance with IEC/IS standards.
Summary
HV Panel Testing is a critical step in ensuring the safety and reliability of high-voltage systems.
It verifies insulation strength, relay coordination, and breaker performance before the system goes live.
Proper testing helps engineers detect and correct issues early, ensuring smooth and secure operation of the power network.
Conclusion
HV Panel Testing is not just a routine check — it’s a preventive measure that protects both equipment and human life.
By performing detailed testing and verification, engineers ensure that the entire electrical system operates efficiently, safely, and in accordance with industry standards.
Click Here : LV Panel Testing
Regular testing and maintenance after commissioning further enhance system stability and lifespan.
